Types of Ball Valve Structures: A Comprehensive Guide

Ball valves are essential components in various industries, known for their reliability and efficiency in controlling fluid flow. Understanding the different types of ball valve structures can help you choose the right valve for your specific application. This article explores the various ball valve structures, their features, and their uses, incorporating essential keywords to enhance search engine visibility.

1. Floating Ball Valve

The floating ball valve is one of the most common types. In this design, the ball is not fixed and is free to move slightly within the valve body. The ball is held in place by two sealing rings, which ensure a tight seal when the valve is closed. This type of valve is ideal for low-pressure applications and is widely used in water and gas systems.

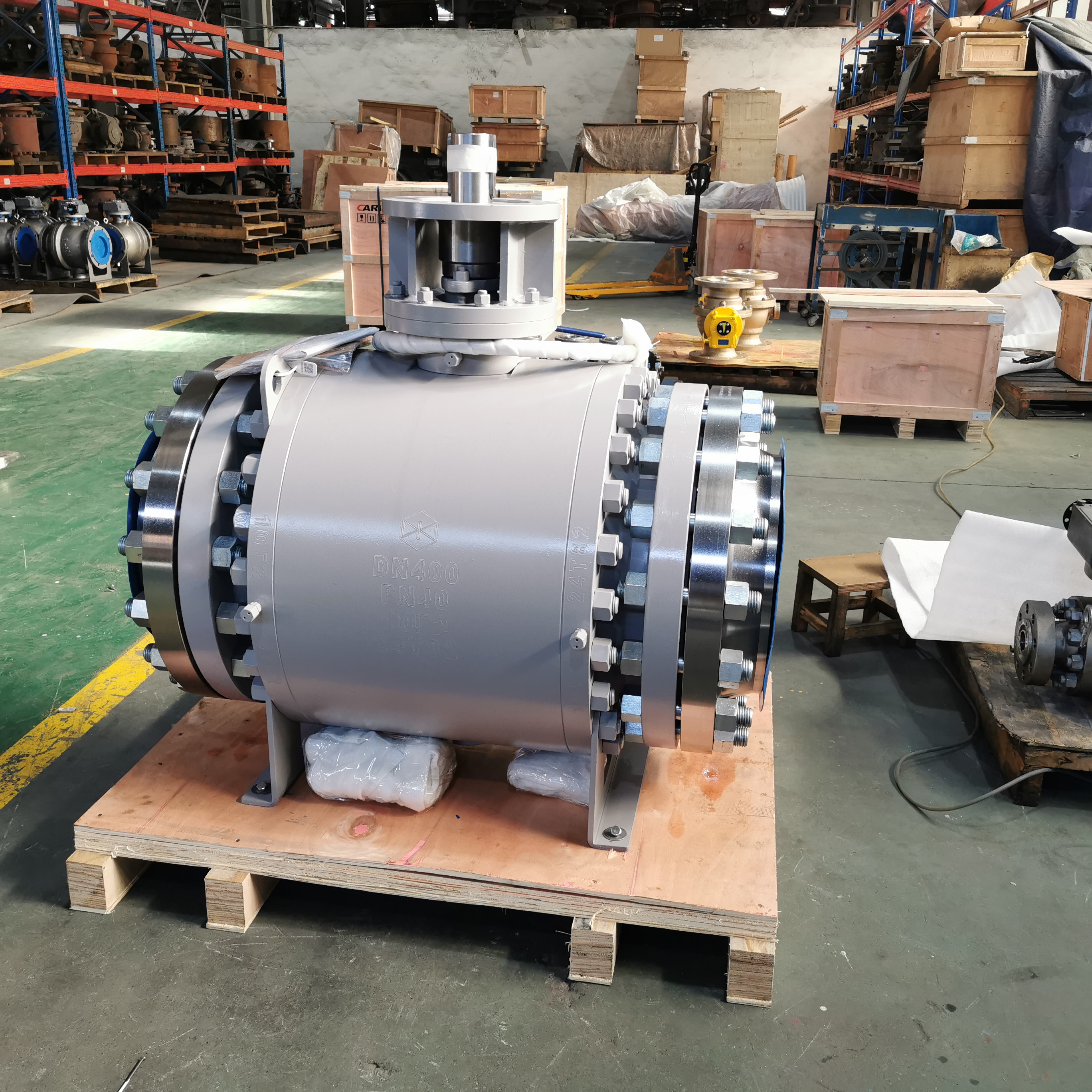

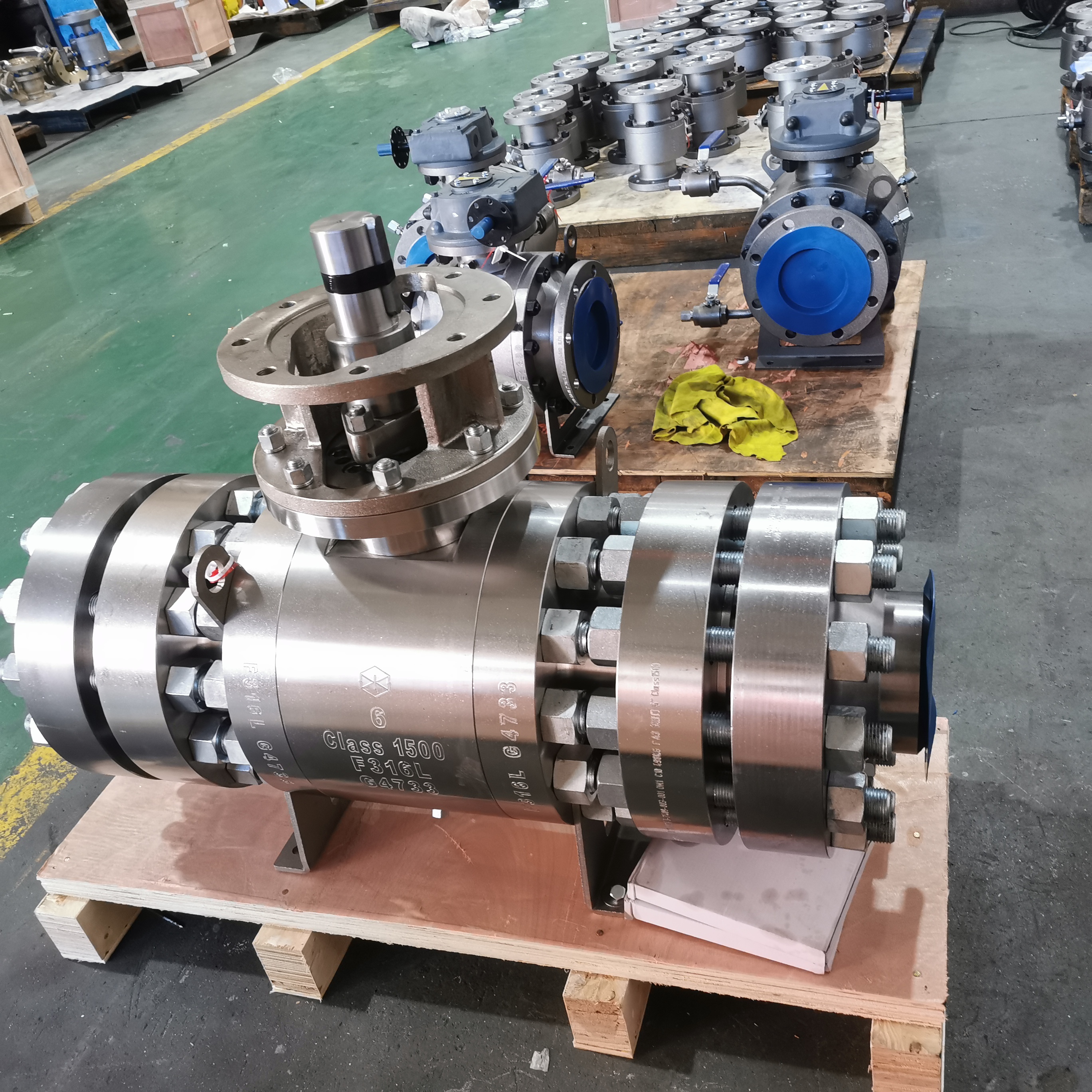

2. Trunnion Mounted Ball Valve

Trunnion mounted ball valves are designed for high-pressure and large-diameter applications. The ball is supported by a trunnion, which reduces the operating torque and provides additional stability. This structure is commonly used in oil and gas pipelines, where high pressure and large flow rates are prevalent.

3. Top Entry Ball Valve

Top entry ball valves allow for easy maintenance and inspection without removing the entire valve from the pipeline. The ball and internal components can be accessed from the top of the valve body, making it a convenient choice for systems that require frequent servicing.

4. Side Entry Ball Valve

Side entry ball valves are assembled from the sides, making them robust and suitable for high-pressure applications. This design is often used in the chemical and petrochemical industries, where durability and reliability are crucial.

5. Three-Way Ball Valve

Three-way ball valves have an L-shaped or T-shaped bore, allowing for multiple flow directions. They are used in applications where flow diversion or mixing is required, such as in HVAC systems and process control.

6. V-Port Ball Valve

V-port ball valves have a V-shaped ball, which provides precise flow control. These valves are ideal for applications requiring accurate flow regulation, such as in the food and beverage industry and chemical processing.

7. Cavity Filler Ball Valve

Cavity filler ball valves are designed to prevent the accumulation of fluids in the valve cavity, which can be crucial in applications involving viscous or corrosive fluids. This design is commonly used in the pharmaceutical and food industries.

Conclusion

Understanding the different types of ball valve structures is crucial for selecting the right valve for your application.

Whether you need a valve for low-pressure systems, high-pressure pipelines, or precise flow control, there is a ball valve structure designed to meet your needs.

Contact us,you can find the perfect ball valve for your project.
