Introduction
Valve leaks are silent profit killers in industries like oil and gas, chemical processing, and water treatment. A single leaking valve can waste thousands of dollars in resources annually, escalate safety risks, and trigger unplanned downtime. This guide reveals actionable strategies to detect, address, and prevent valve leaks—ensuring regulatory compliance, operational safety, and cost savings.

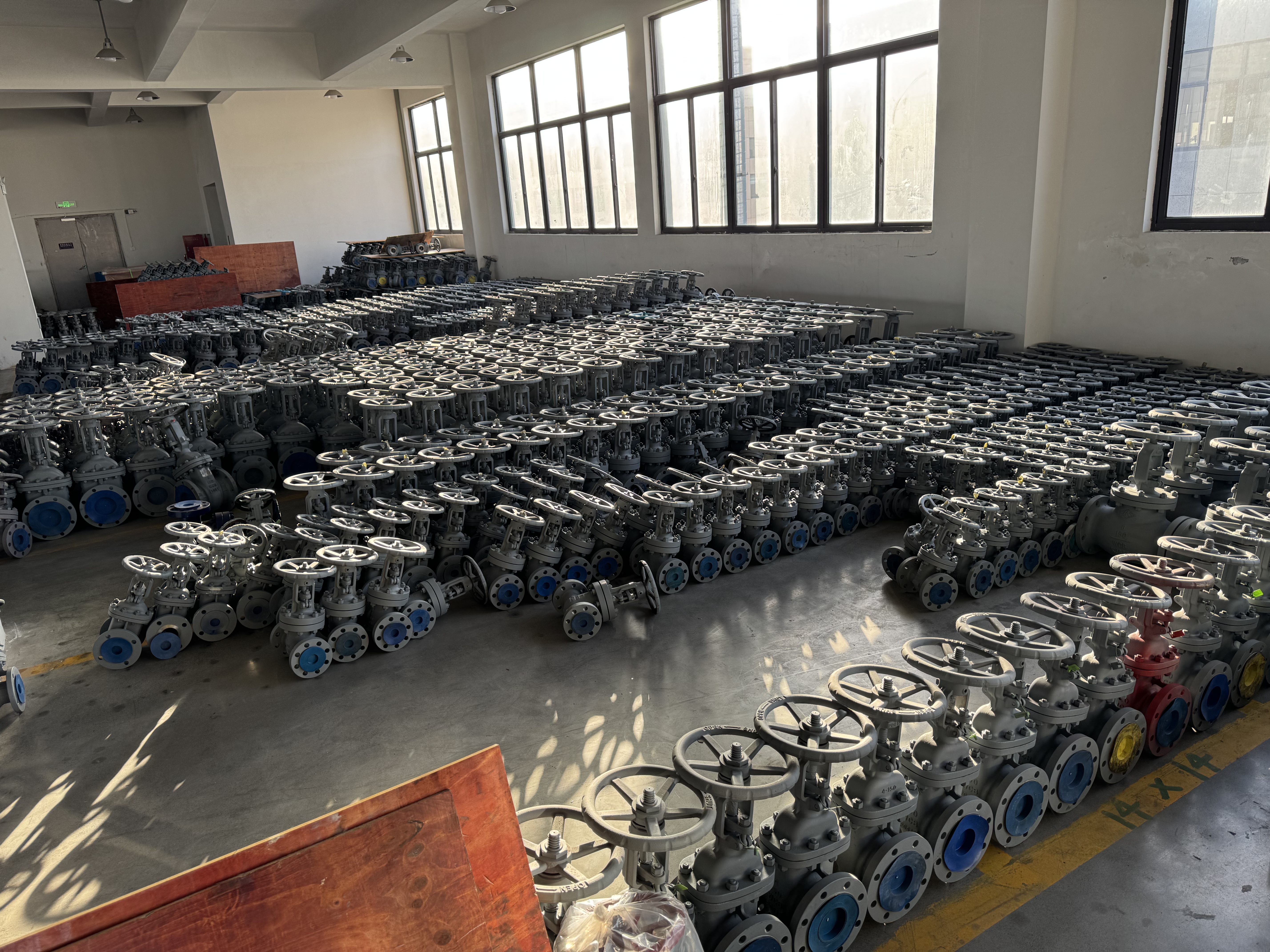

Gate Valve Inventory

1. Identifying Valve Leakage: Types and Causes

Understanding the root cause is critical for effective resolution. Common valve leakage types include:


A. Stem Leakage (35% of Cases)

Symptoms: Fluid seepage around the stem, especially in control valves.

Causes: Degraded graphite packing, poor surface finish (Ra > 0.8μm), or thermal expansion.


B. Seat Leakage (28% of Cases)

Symptoms: Downstream pressure rise after valve closure.

Causes: Erosion from abrasive media or thermal deformation in high-temperature applications (>300°C).


C. Body Leakage (15% of Cases)

Symptoms: Pinhole leaks on valve surfaces, common in cast iron valves exposed to acidic fluids.

Causes: Undetected casting defects or insufficient wall thickness in low-pressure valves (CL150 and below).


D. Flange Leakage (12% of Cases)

Triggers: Vibration-induced bolt loosening or gasket failure.


2. Emergency Response: 4-Step Protocol to Control Leaks

Step 1: Risk Assessment & Isolation

Minor Leaks (<5 drips/min): Tag and schedule repair within 48 hours.

Moderate Leaks: Depressurize the line (rate ≤0.5 MPa/min) and isolate upstream/downstream valves.

Critical Leaks: Activate ESD systems, evacuate personnel, and deploy firewater curtains for flammable gases.


Step 2: Temporary Sealing Solutions

Pressure-Activated Sealants: Inject high-temp-resistant compounds (-50°C to 600°C) into leak points.

Magnetic Clamps: Ideal for carbon steel valves (magnetic force ≥0.8 MPa).

Robotic Repair: Use ATEX-certified robots in explosive zones.


Step 3: Drainage & Monitoring

Redirect leaking fluid to emergency tanks and monitor temperatures with infrared cameras (±2°C accuracy).


3. Long-Term Solutions: From Repair to Prevention

A. Advanced Repair Techniques

Laser Cladding: Apply Stellite 6 alloy on valve stems for corrosion resistance (HRC55 hardness).

CNC Grinding: Restore valve seats to ≤0.001mm flatness.

Smart Gaskets: Use spiral-wound designs (graphite + 316L steel) for 5x longer lifespan than asbestos.


B. Predictive Maintenance Systems

IoT Sensors: Monitor real-time data (vibration, temperature, pressure) via cloud platforms.

Acoustic Emission Testing: Detect leaks using 20–100 kHz frequency signatures.

AI Analytics: Predict seal failure 14 days in advance with 92% accuracy.


C. Valve Selection & Upgrades

Material Optimization: Choose duplex steel for corrosive environments or ceramic-lined valves for slurry services.

Smart Valve Integration: Install actuators with API 624/ISO 15848-1 certifications for low-emission compliance.


4. Case Study: Reducing Leaks by 82% in a Petrochemical Plant

A global energy company achieved dramatic results by:

Deploying digital twins to simulate seal stress under 50+ operating scenarios.

Using AR-guided repairs to cut downtime by 60%.

Implementing blockchain-tracked spare parts to eliminate counterfeit components.


Whether you’re dealing with corroded seals, high-pressure leaks, or aging components, our industrial valve maintenance services include:

  • Proactive leak detection using IoT-enabled diagnostics.

  • Durable valve sealing techniques with corrosion-resistant materials.

  • Emergency valve repair services to minimize disruptions.

  • Customized solutions for industries like oil and gas, water treatment, and pharmaceuticals.


By addressing valve leakage proactively, you’ll reduce operational costs, extend equipment lifespan, and improve energy efficiency.

Trust our 24/7 valve leakage repair expertise to keep your operations running smoothly and sustainably.
