ANSI 150LB~2500LB IN 1"~48" PN PN6~PN420 DN DN25~DN1200
Main Features and Options
Two or three pieces body sections butt welded together; no leak path to environment

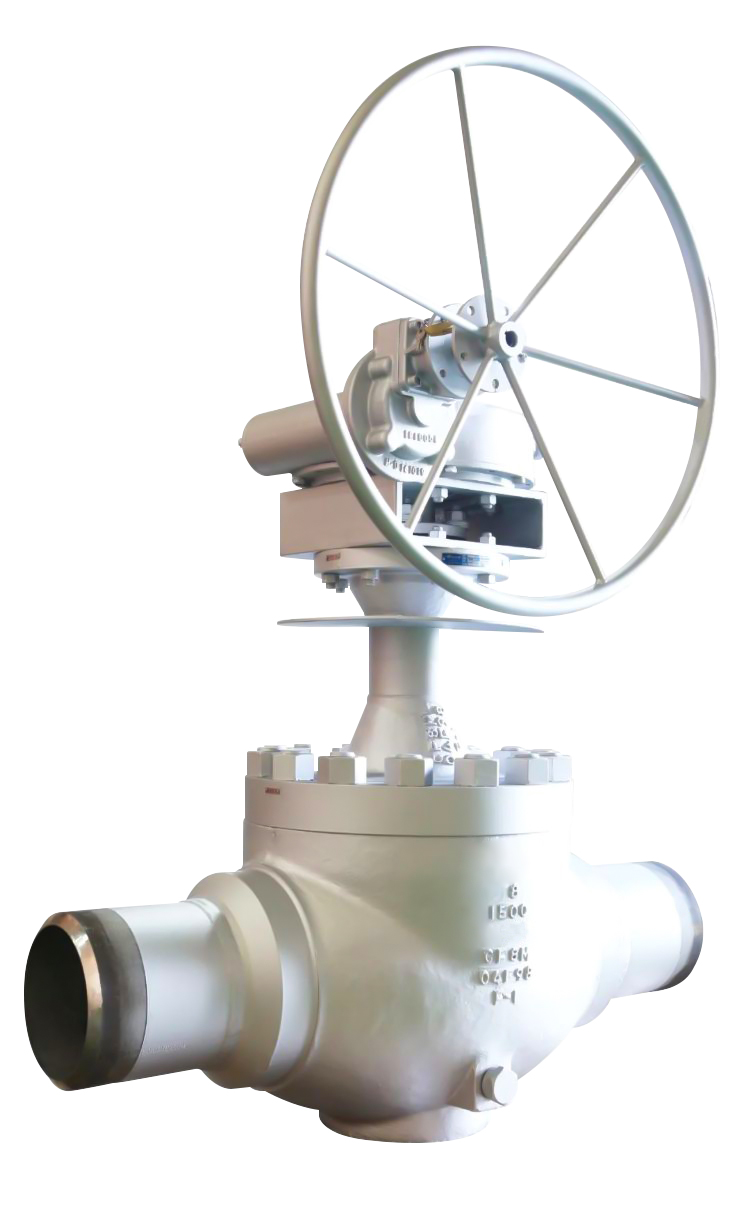

Specific design for underground service with operable stem extension and bypass system
Extremely wide selection of materials for both body and internals, including carbon steel, low alloy steels, high temperature steels, stainless steels (304 series, 316 series), Duplex and Super Duplex steels, and cast iron
Overlays: 316L stainless steel
Coatings: ENP
Soft or Metal Seated
Single or Double Piston Effect Seats (SPE / DPE optional)
Double Block and Bleed
Seat pocket / ball surface
Special Constructions Available for High and Low Temperature (Cryogenic), Erosive/Abrasive, Corrosive Service
